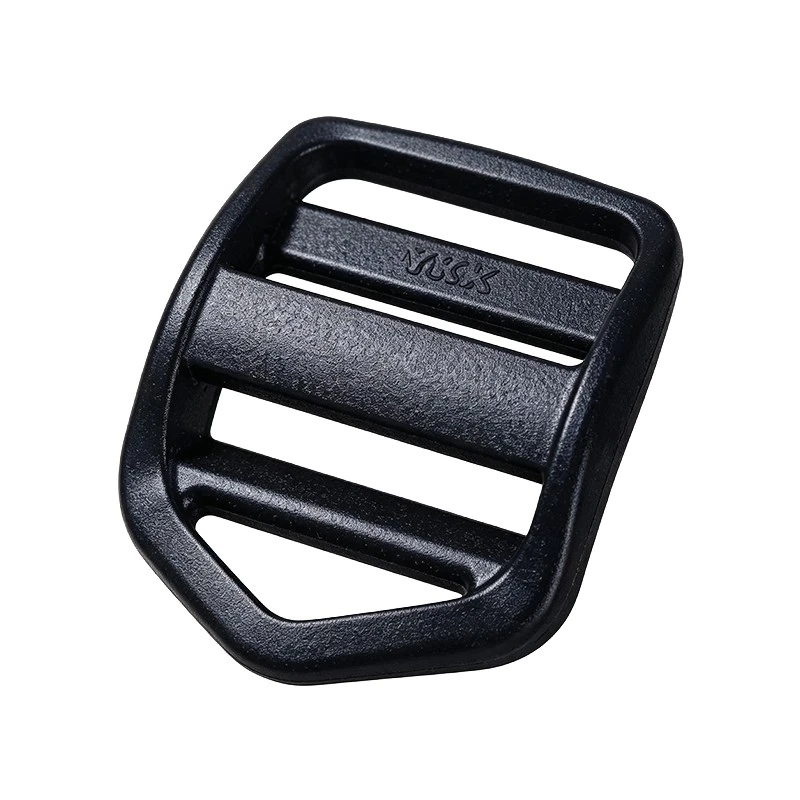

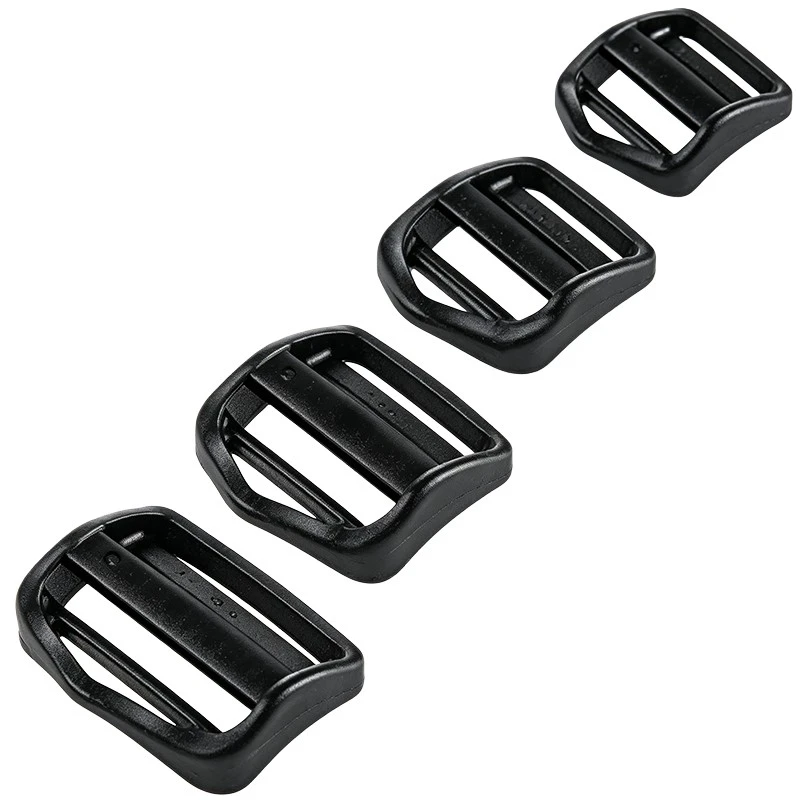

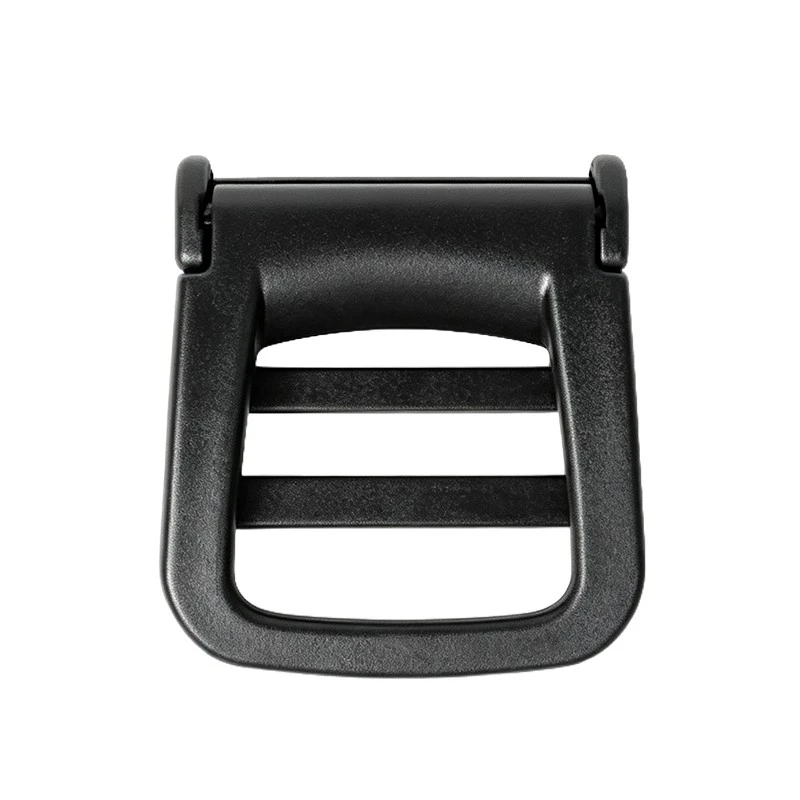

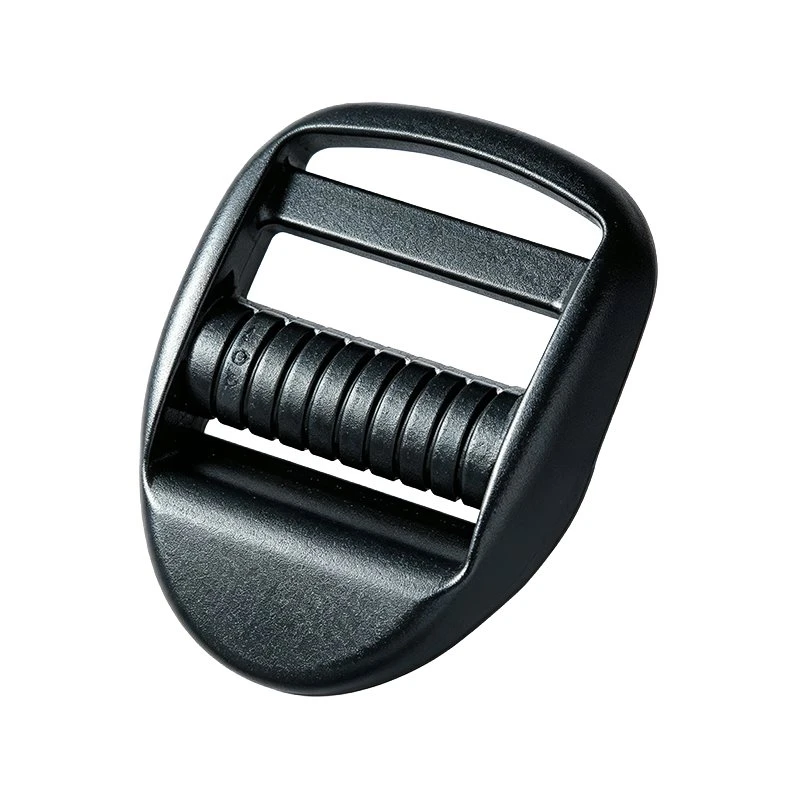

Bag Strap Adjuster Buckle

Compact Adjustment for Bag and Backpack Straps

The Bag Strap Adjuster Buckle uses a flat frame or rectangular center-bar structure to control shoulder-strap length. Webbing is routed around the internal bar, and friction helps hold the selected position.

The product has a simple structure and occupies relatively little space on the strap. It is suitable for casual backpacks, school bags, sports bags, waist bags, travel bags, laptop bags, and light outdoor carrying systems.

Available materials include iron, zinc alloy, stainless steel, and aluminum alloy. Buyers can select a material according to the bag weight, appearance, use environment, and target cost.

Width, Thickness, and Friction Control

The internal width ranges from 15 mm to 50 mm. The buckle can be used with webbing from 0.8 mm to 3.0 mm thick. Frame thickness ranges from 2 mm to 5 mm.

The reference static tensile load is 200–800 N.
Nylon, polyester, cotton, and leather straps have different surface-friction characteristics. The internal bar spacing and surface condition should therefore be confirmed with the actual webbing.

If the spacing is too wide, the strap may slip after a load is applied. If the spacing is too narrow, threading and adjustment may become difficult.

Corners and edges can be rounded, chamfered, and polished to reduce long-term friction damage to the strap surface.

The stated tensile range is a reference. Actual performance depends on the buckle material, frame thickness, bar position, webbing type, threading method, and complete strap assembly.

Before volume production, the Bag Strap Adjuster Buckle should be tested with the actual strap material. The test can confirm whether the webbing passes through the buckle correctly and whether noticeable slipping occurs under a static load or after repeated adjustment.

Zhejiang Tongtai Lock Industry can adjust the internal width, frame thickness, bar position, and surface appearance according to the webbing dimensions and bag design.

The factory can also reproduce or develop products from technical drawings or physical samples.

Regular samples do not require a sample fee, while shipping costs are paid by the buyer. Adjustments to an existing specification can normally be sampled in approximately 2–3 days. Development time for a new product depends on structural complexity.

Dimensions are checked after raw material forming. Surface-treated products are inspected for color and appearance after returning to the factory.

Process inspections are carried out during production. Every finished item is checked before packaging.

Regular products have no fixed minimum order quantity requirement. Different colors or models may be mixed in one order according to the actual production arrangement. Custom packaging normally requires 1,000–2,000 pieces.

Products are packed in inner boxes and outer cartons. Pallets and stretch film can be added according to transportation requirements.

After delivery, the sales team can assist when buyers experience strap slipping, difficult threading, or dimensional compatibility issues. The team can provide application suggestions and help confirm an appropriate handling solution.
