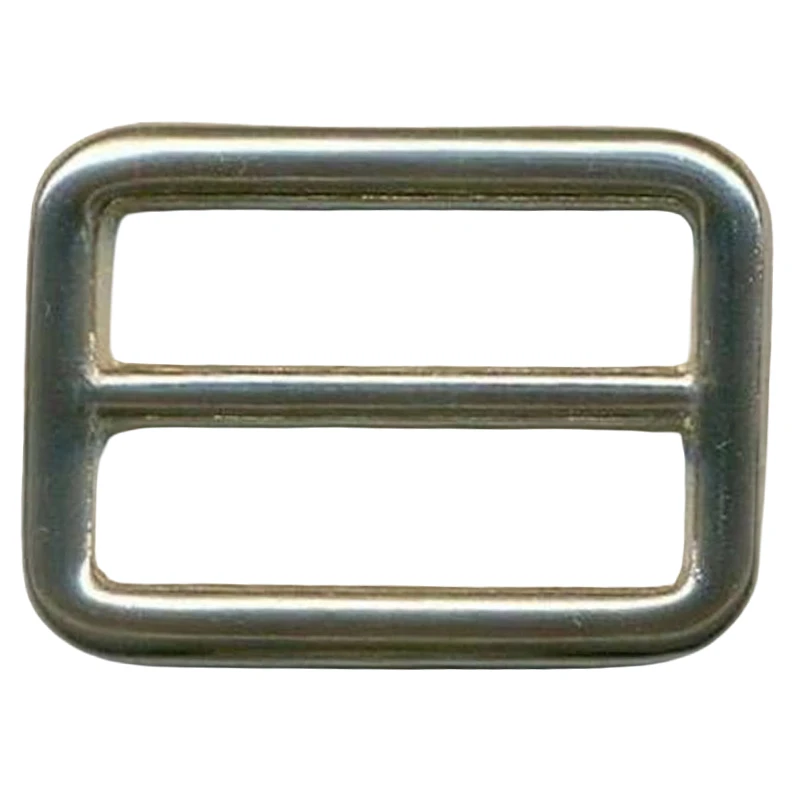

Metal Strap Adjuster Buckle

Adjustable Hardware for Shoulder Straps and Webbing

The Metal Strap Adjuster Buckle is a length-adjustment component used in shoulder straps and webbing systems. It allows users to adjust a bag strap for different body heights, carrying positions, and applications.

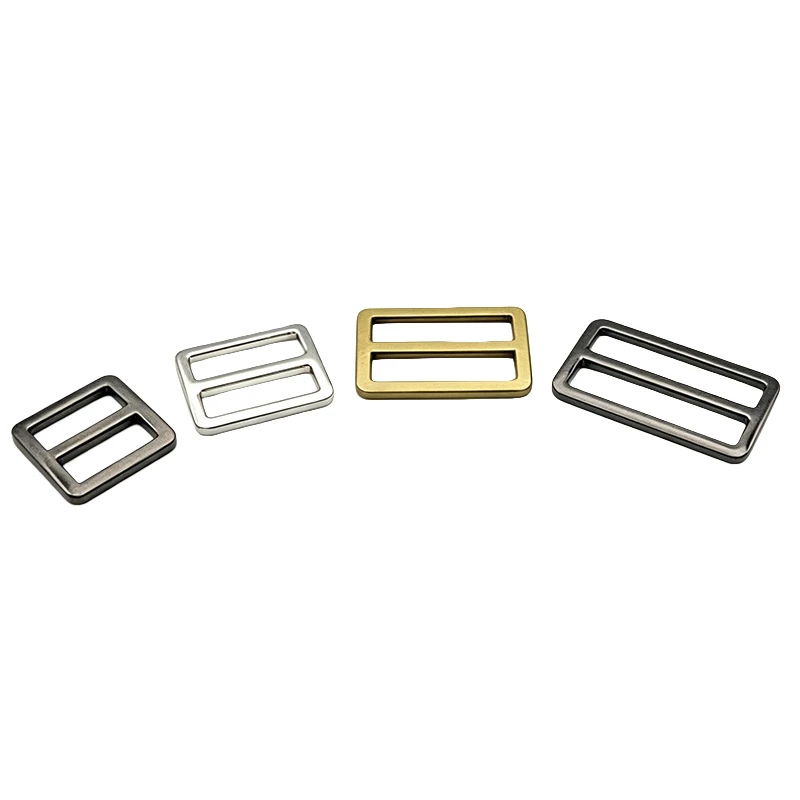

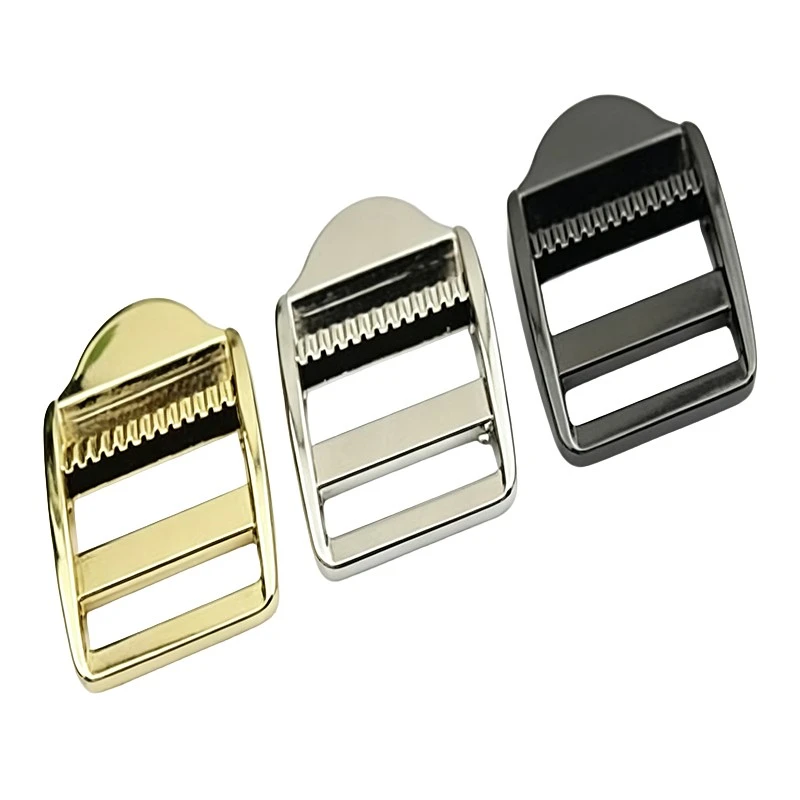

The product is suitable for shoulder bags, crossbody bags, camera bags, laptop bags, sports bags, and tool bags. Available structures include a rectangular adjuster, square frame, center-bar design, or a custom shape developed according to the buyer's design.

Strap length is held by the friction and routing created between the webbing and the buckle bars. For this reason, the dimensions of the internal opening and the position of the bars must match the actual webbing.

Available materials include zinc alloy, iron, stainless steel, and brass. Material selection can be based on the bag weight, intended appearance, use environment, and target cost.

Matching the Buckle to the Actual Webbing

The internal width range is 20–50 mm. The product can be used with webbing from 0.8 mm to 3.5 mm thick.

Nylon, polyester, cotton, and leather straps have different thicknesses and surface-friction characteristics. The bar spacing and internal threading clearance should therefore be confirmed with the actual strap material.

For thin webbing, buyers should check whether the strap slips when a load is applied. For thicker webbing, insufficient clearance may make threading difficult or create excessive resistance during adjustment.

The inside contact areas may be chamfered, polished, or tumbled. These processes create smoother surfaces where the metal touches the strap and help reduce fraying, scratching, or cutting caused by repeated movement.

Depending on the selected material, bar structure, and dimensions, the reference static tensile load is 300–1,000 N. The reference salt spray time is 24–96 hours.

These values are reference ranges. The complete strap assembly should be evaluated according to its materials, installation, and intended load.

Zhejiang Tongtai Lock Industry can adjust the internal width, bar position, frame thickness, surface color, and brand marking according to a technical drawing, physical sample, or webbing specification.

The company has an independent research and development team that can improve an existing structure or develop a new model.

Sample confirmation is supported before volume production. Laser-logo work and adjustments to an existing length or dimension normally take approximately 2–3 days. Sampling time for a newly developed structure depends on product complexity.

Regular products have no fixed minimum order quantity requirement. Custom packaging normally requires 1,000–2,000 pieces. Different colors or models may be mixed in one order according to the actual production arrangement.

The Metal Strap Adjuster Buckle should be tested with the intended webbing before the final order is approved. This allows buyers to check threading clearance, adjustment resistance, surface contact, and load-related slipping.

After forming, the product dimensions are inspected. Surface-treated components are checked for color, appearance, and visible surface defects when they return to the factory.

Process inspections are carried out during production. Each finished product is checked before packaging, and a final sampling inspection is completed before shipment.

Progress updates may be provided when production scheduling begins, after the first finished products are completed, during mid-production, and after packaging.

The Metal Strap Adjuster Buckle is packed in inner boxes and outer cartons. Stretch film protection can be added when pallet transportation is required. This order process helps bag brands, strap manufacturers, and hardware buyers coordinate later assembly and transportation.
