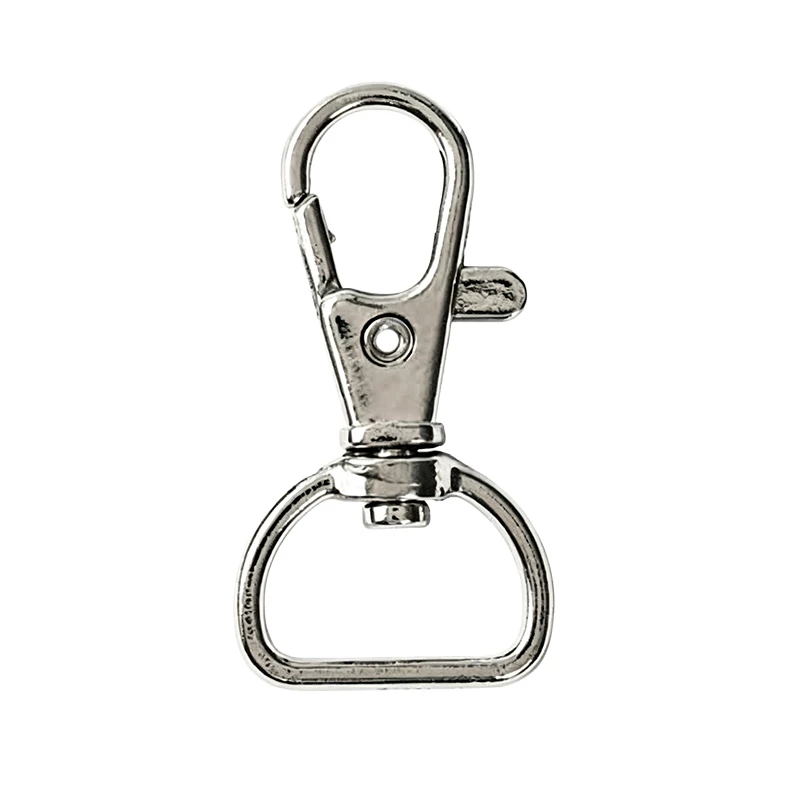

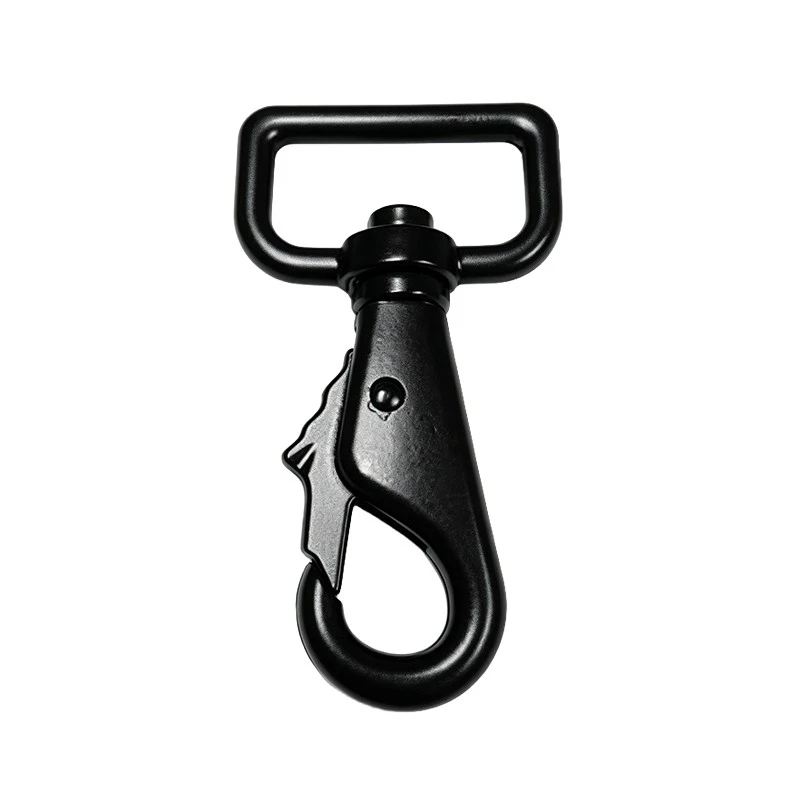

Metal Swivel Snap Hook

360-Degree Rotation for Straps and Lanyards

The Metal Swivel Snap Hook combines a spring-loaded hook with a 360-degree rotating connection. The swivel section can adjust its direction while the strap or lanyard is in use.

This movement helps reduce twisting, tangling, and uneven loading. The product is suitable for crossbody bags, camera straps, identification lanyards, key cords, pet leashes, outdoor equipment, and detachable straps.

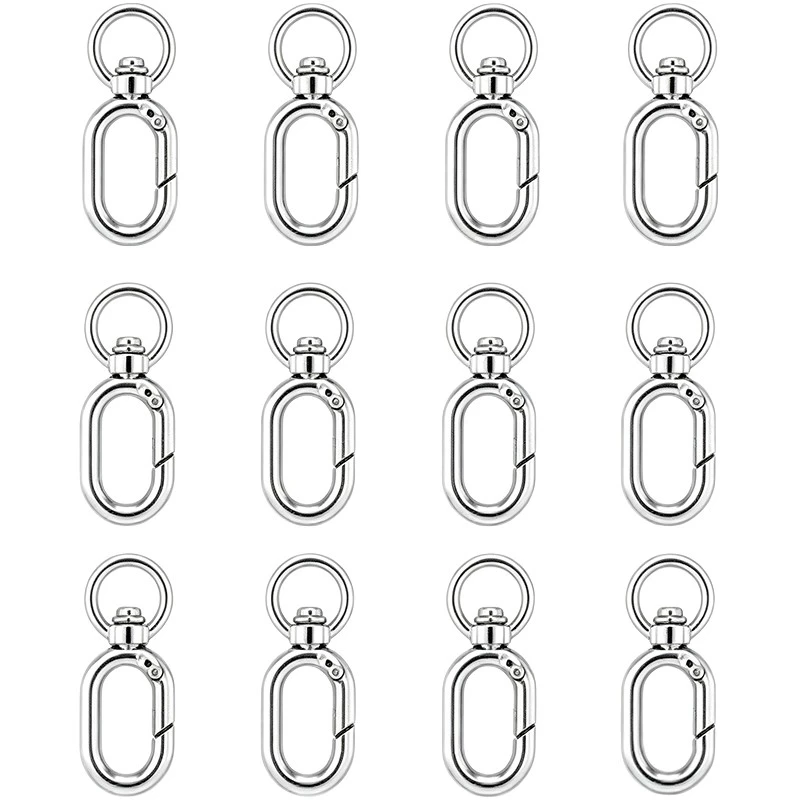

The swivel base can be designed to connect with a round ring, D-ring, square ring, or webbing interface. This allows the component to be integrated into different strap systems.

Available materials include zinc alloy, iron, stainless steel, and brass. Buyers can choose the material according to appearance, intended use, target load, and surface requirements.

Webbing Interface and Reference Performance

The compatible webbing-interface width is 10–38 mm. The swivel angle is 360 degrees.

The reference static tensile load is 250–1,200 N. The reference salt spray time is 24–96 hours.

The spring gate can be operated with one hand for quick attachment and removal. The swivel section allows the connected strap to change direction more freely during use.

However, smooth rotation does not confirm that the product has sufficient load capacity. For a load-bearing application, buyers should examine the pivot riveting depth, swivel-base thickness, and loosening after repeated or cyclic loading.

Actual performance depends on the material, dimensions, pivot structure, assembly method, and surface finish. The reference values must be confirmed according to the final application.

Zhejiang Tongtai Lock Industry can adjust the structure according to the webbing width, connecting-ring dimensions, hook opening, and target load.

Production can be based on technical drawings or a physical prototype. During the inquiry stage, the sales team confirms the product specification, application position, surface color, logo, and packaging requirements.

For projects that use the hook together with D-rings, strap adjusters, or complete shoulder straps, samples can be assembled and tested as a group. This helps buyers check the rotation space, installation clearance, and actual movement of the complete strap system.

A Metal Swivel Snap Hook should not be selected only by its outside dimensions. The hook opening, lower interface, pivot movement, and connected hardware must work together.

After forming, components are inspected for dimensions. Surface-treated parts are checked for color and appearance after returning to the factory.

Assembly inspection focuses on spring-gate return, pivot rotation, and riveting stability. Process inspections are performed during production, and each finished item is checked before packaging.

Buyers may appoint a third-party inspection company to inspect products at the factory. Progress photos can be supplied when production scheduling begins, when the first finished units are completed, during mid-production, and after packaging.

Products are packed in inner boxes and outer cartons. Stretch film may be added when pallet transportation is required, supporting long-distance shipment and later warehouse handling.
